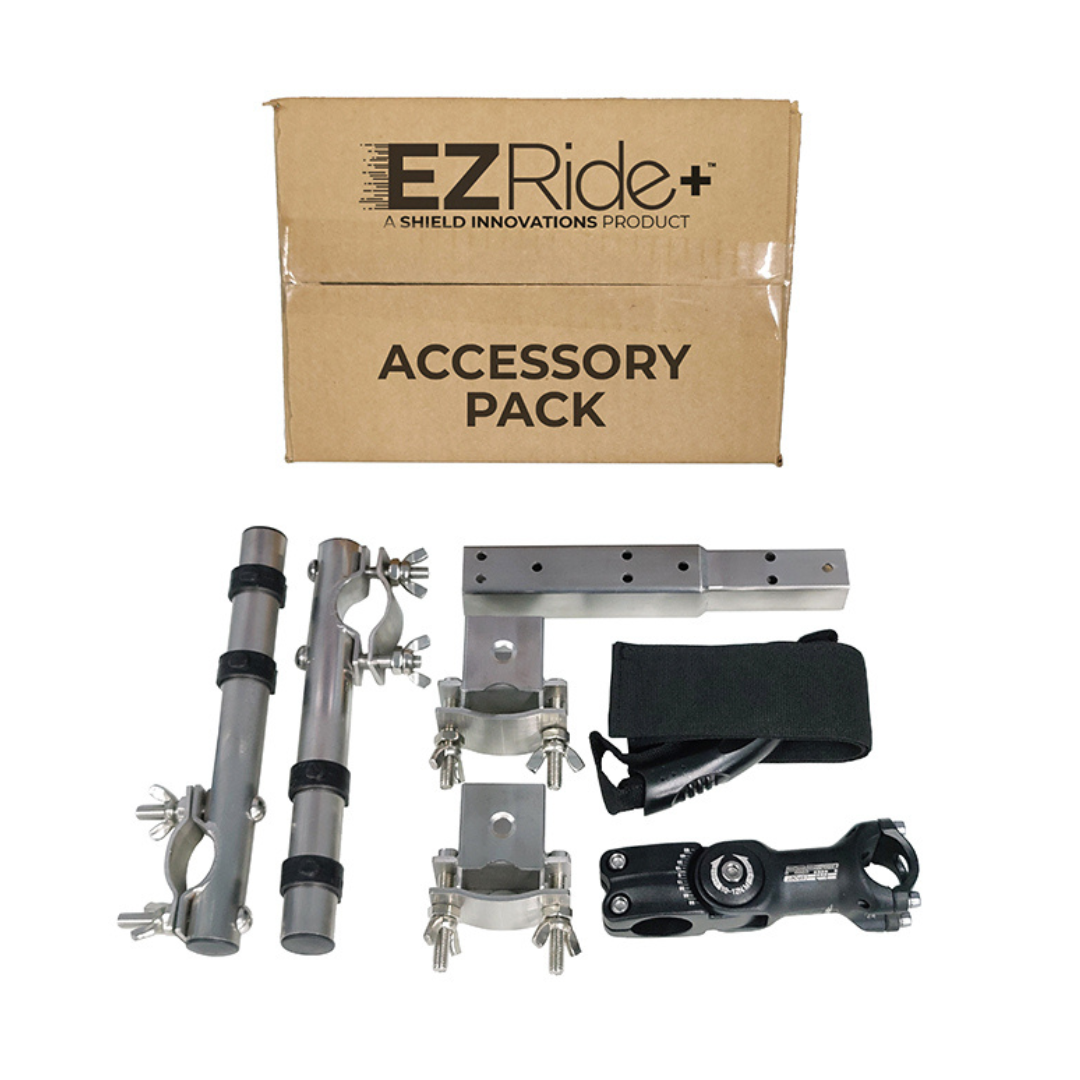

EZRide+ Accessory Pack By Shiel Innovations

The pack includes:

• Set of two Struts

• Tow Bar Extension

• Set of two Butterfly Clips

• Handle Bar Extension

• Grab Handle

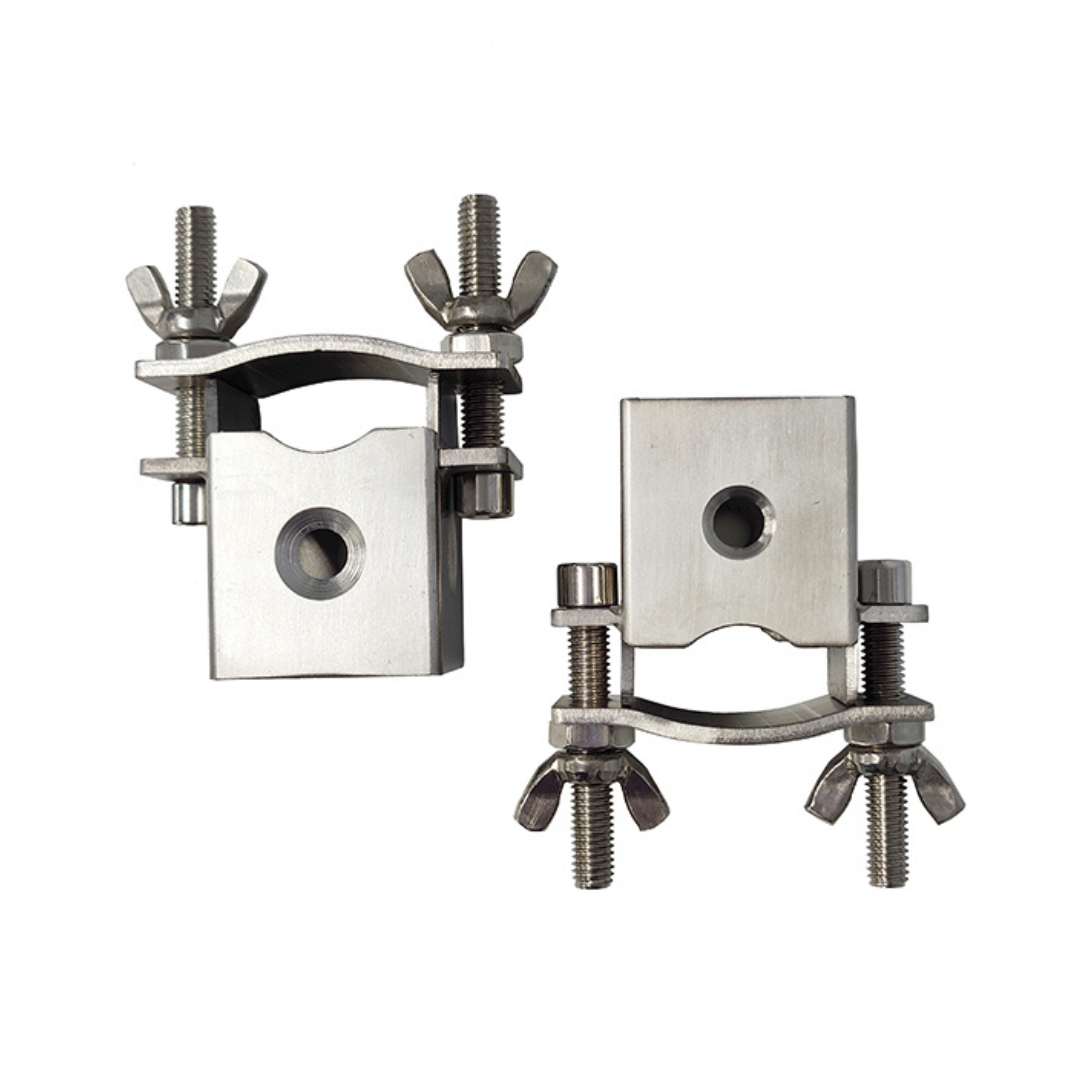

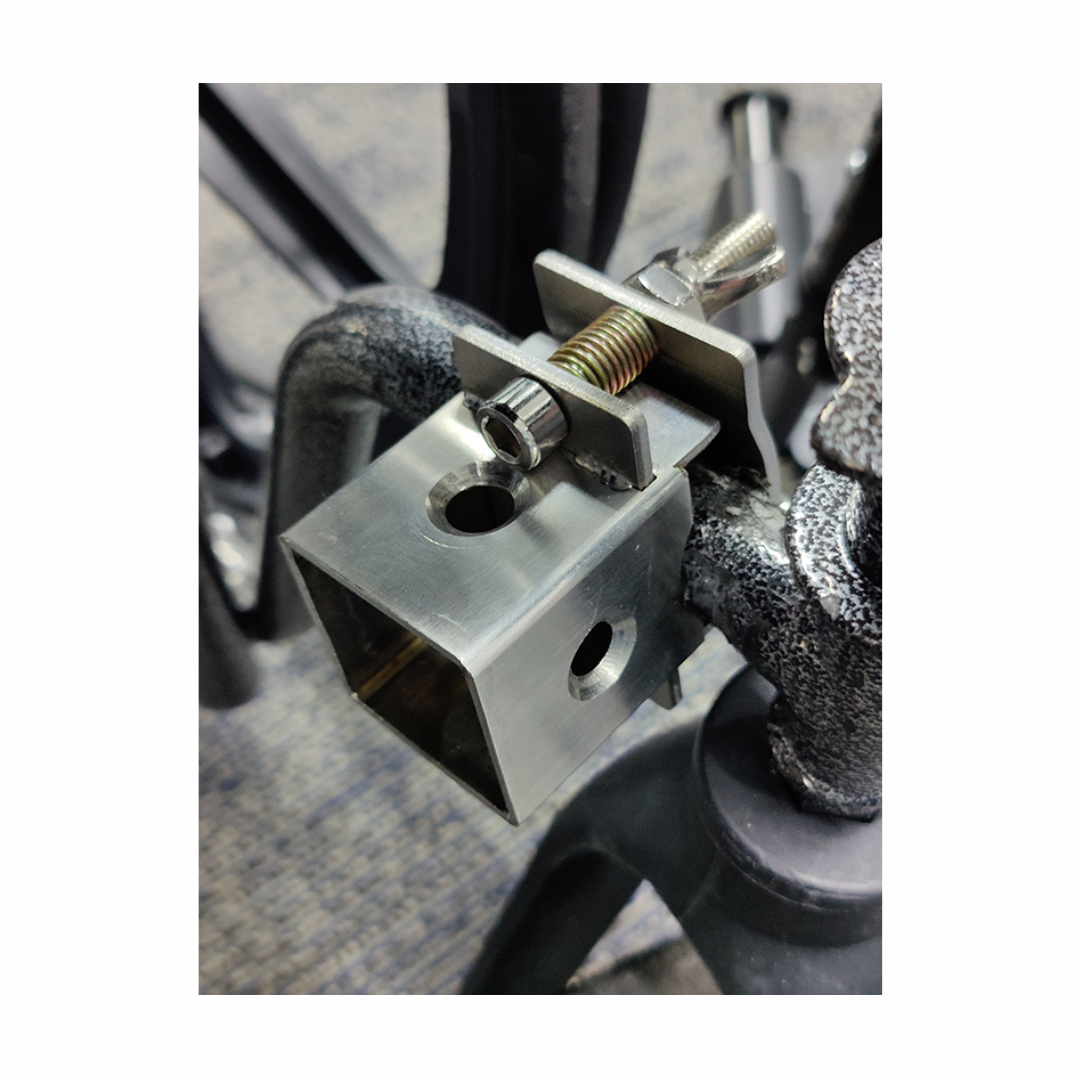

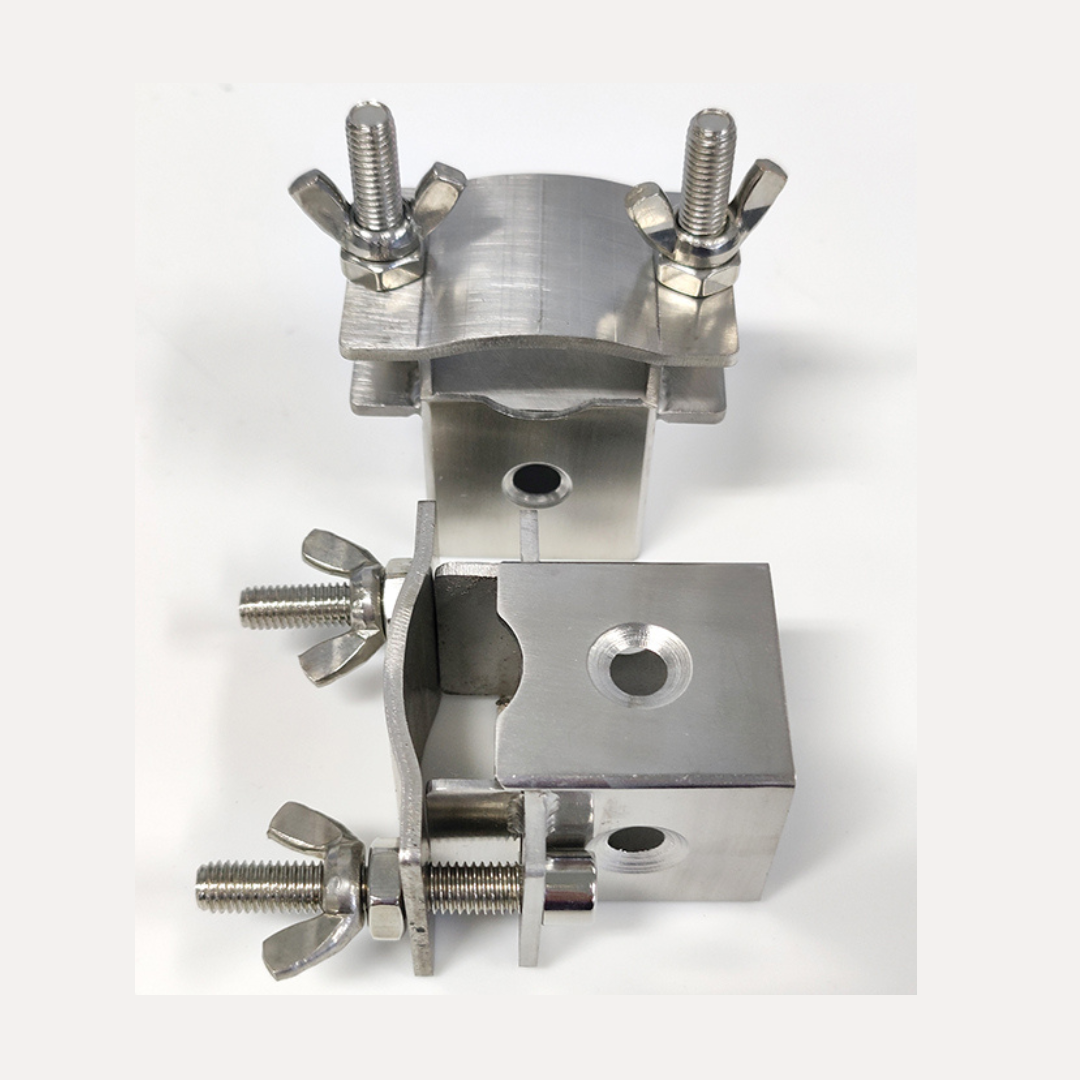

EZRide+ Butterfly Tow Bar Clips:

• Stainless steel construction.

• Tubing up to 36mm (1.4 inches).

• Won’t work if wheelchair tubing is larger than 36mm (1.42 inches).

• Allen screws can be removed and replaced with larger M8 screws (not included) greater than 50mm (2 inches) in length. Allows clips to work on wheelchair tubes larger than 36mm (1.42 inches).

Use the Butterfly Tow Bar Clips for wheelchair models:

• Tilite aeroZ

• Tilite ZRA

• Invacare Crossfire

• Quickie GT

• Kushall AirPro

• Strongback models 24, 24AB, 22s, and 22sAB

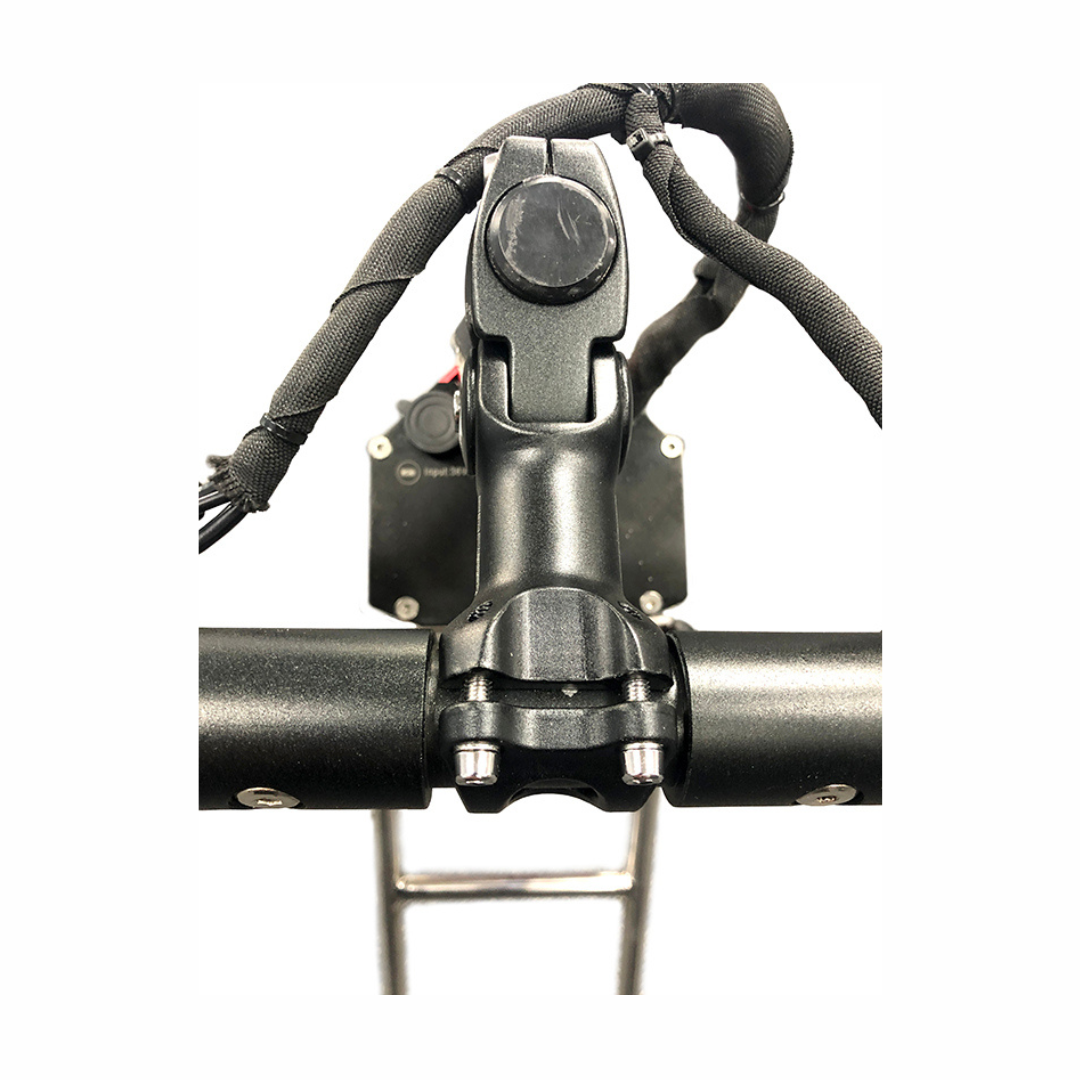

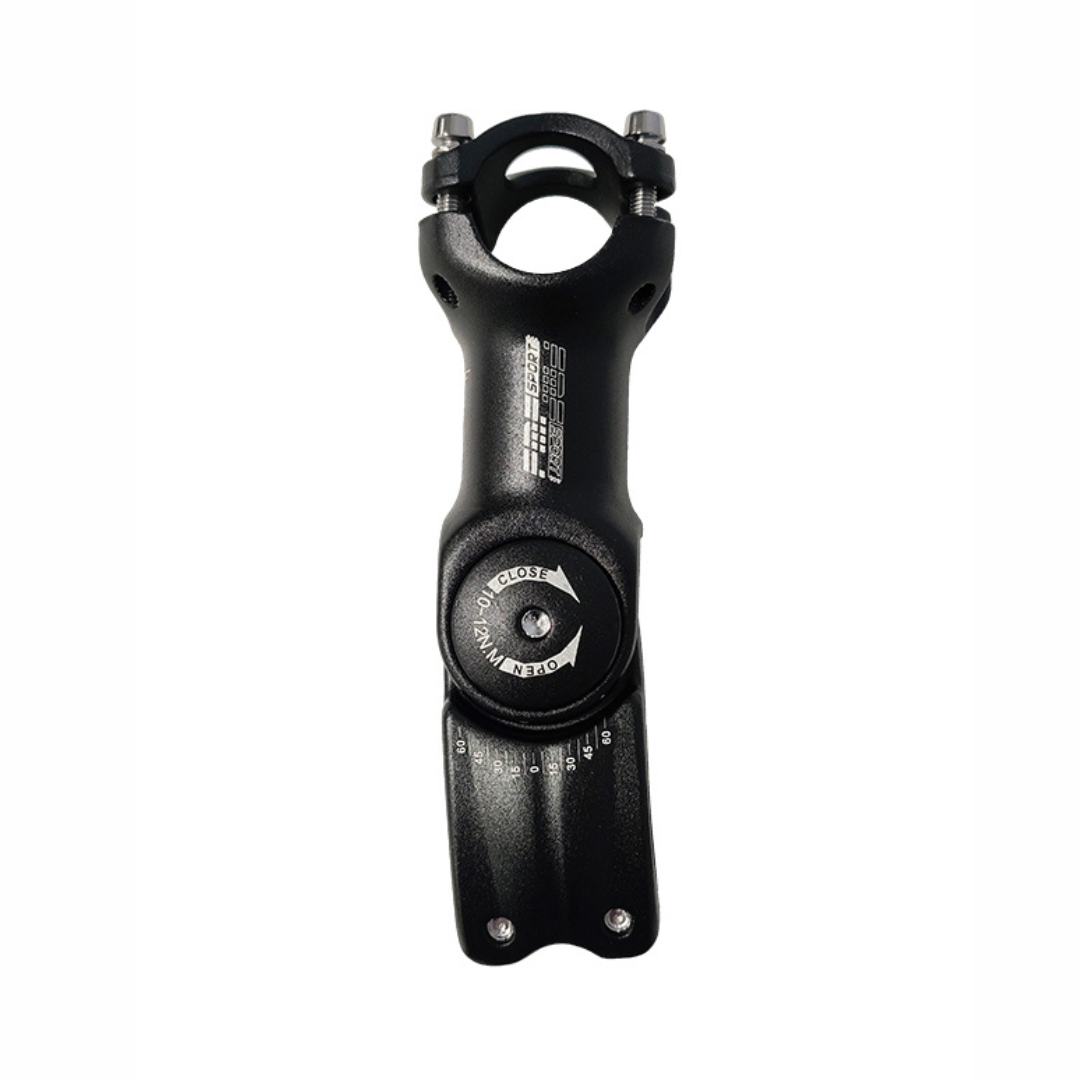

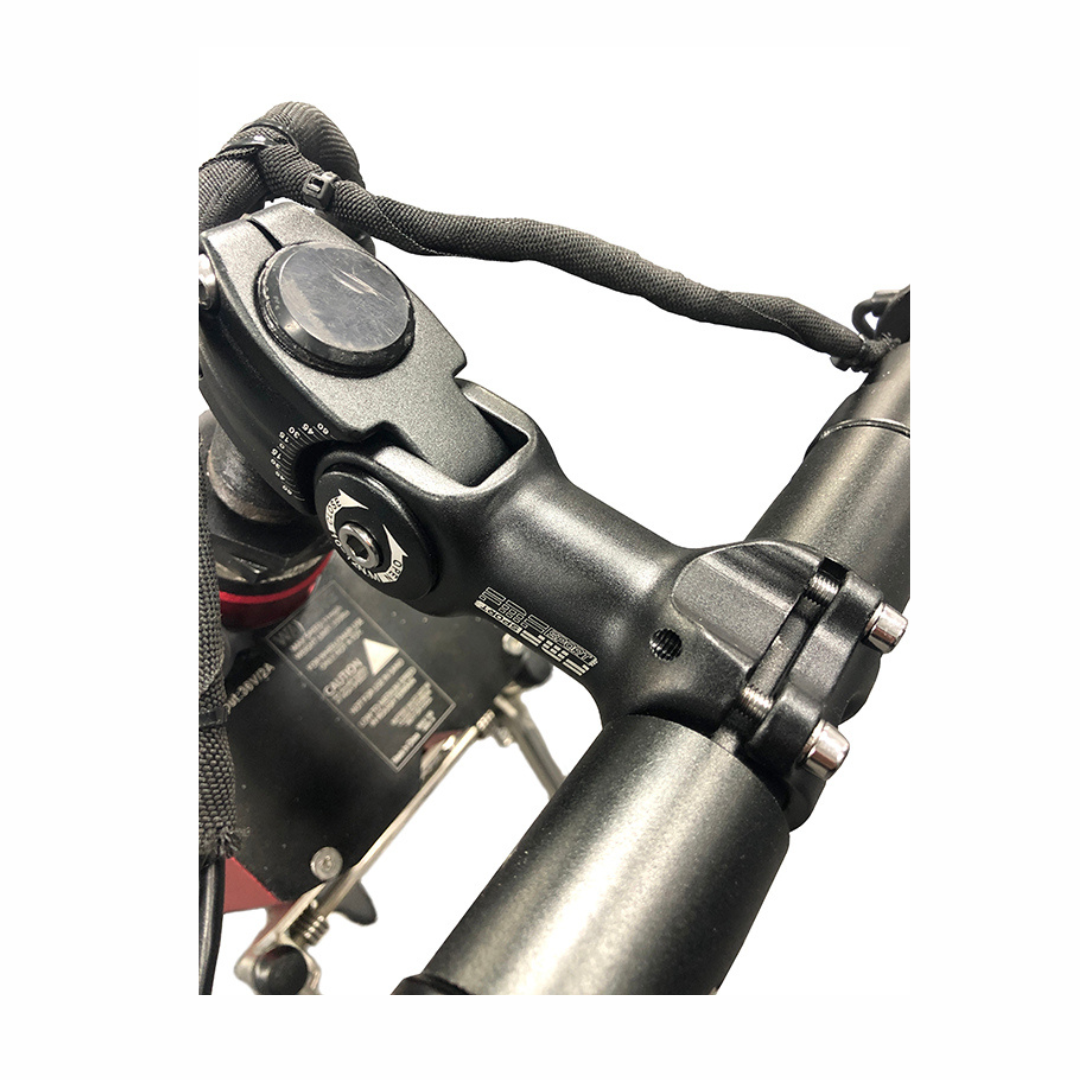

EZRide Adjustable Handle Bar Neck:

• Aluminum construction.

• Increases the reach of the handle bars.

• 4.375in extension with 180 degrees of adjustability.

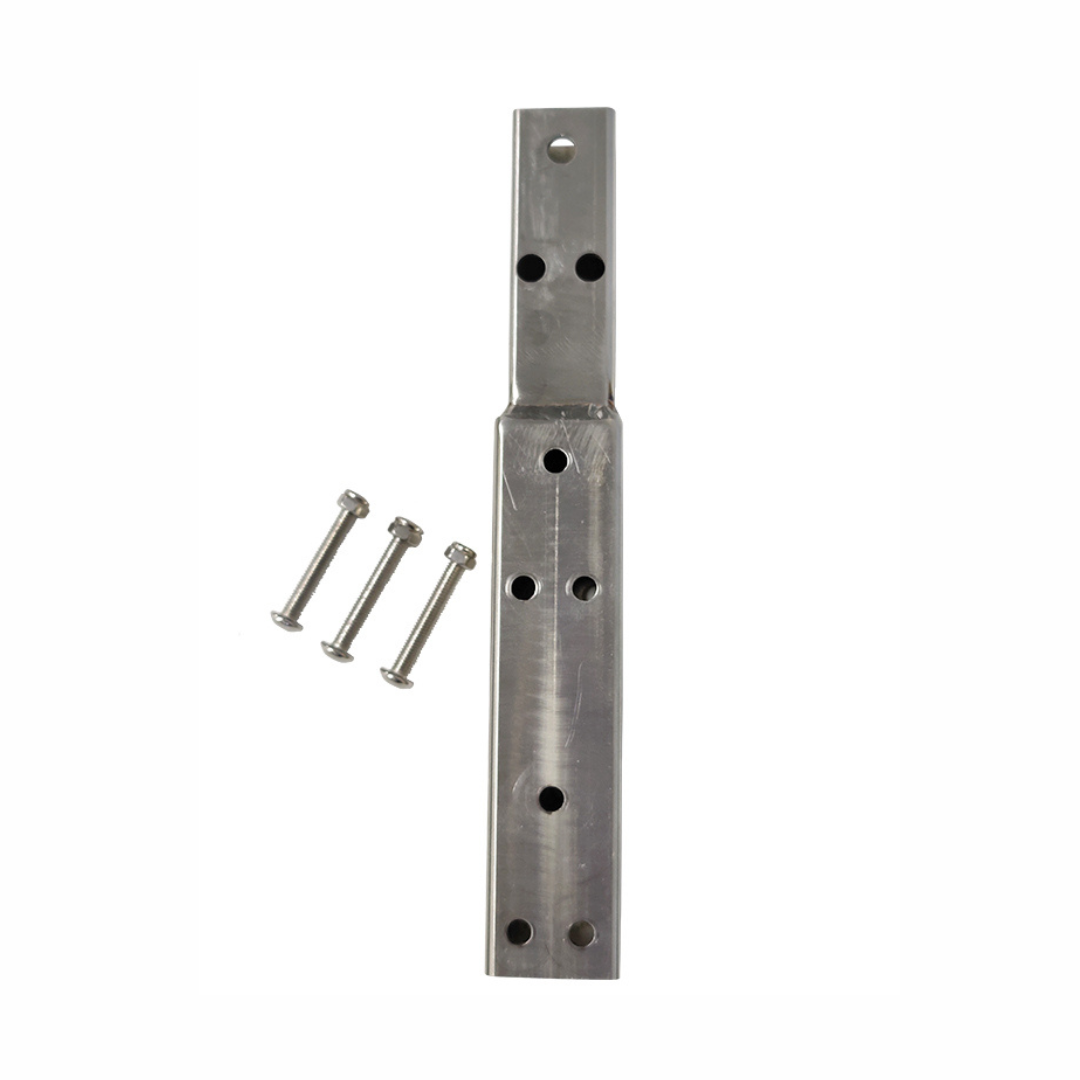

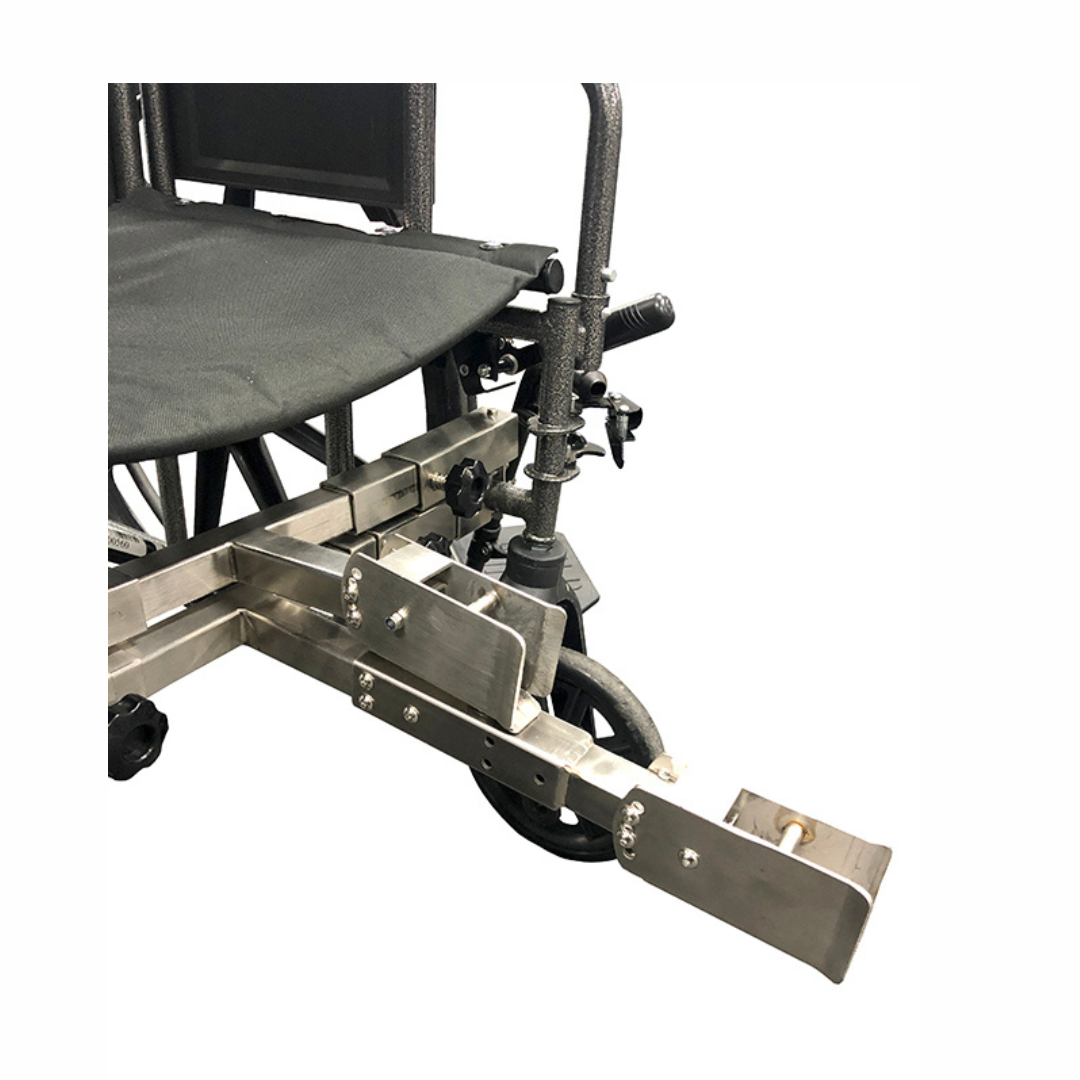

EZRide Tow Bar Extension:

• Constructed from 2mm (.08 inches) thick stainless steel square tubing.

• Configure for a 3 inch or 6 inch extension.

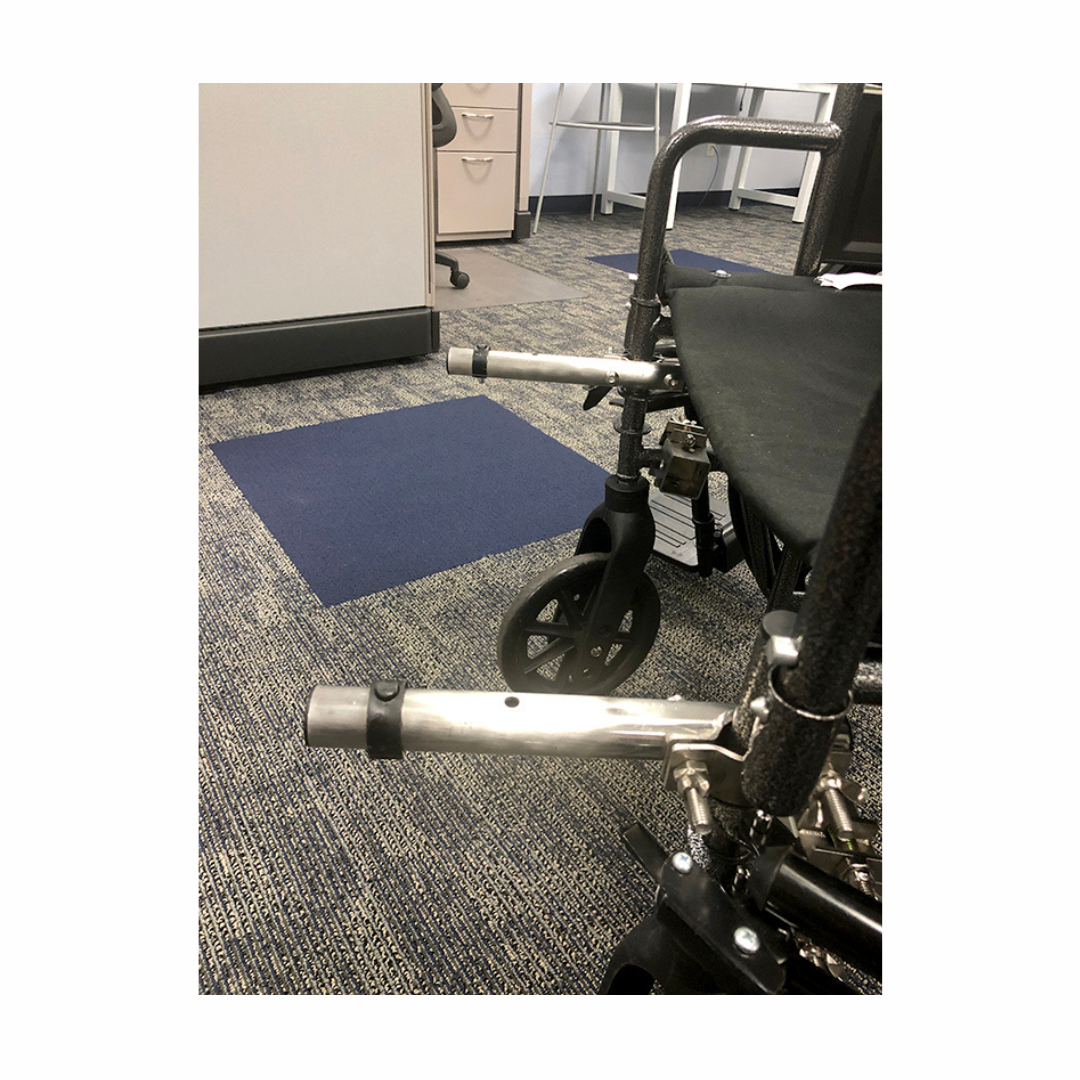

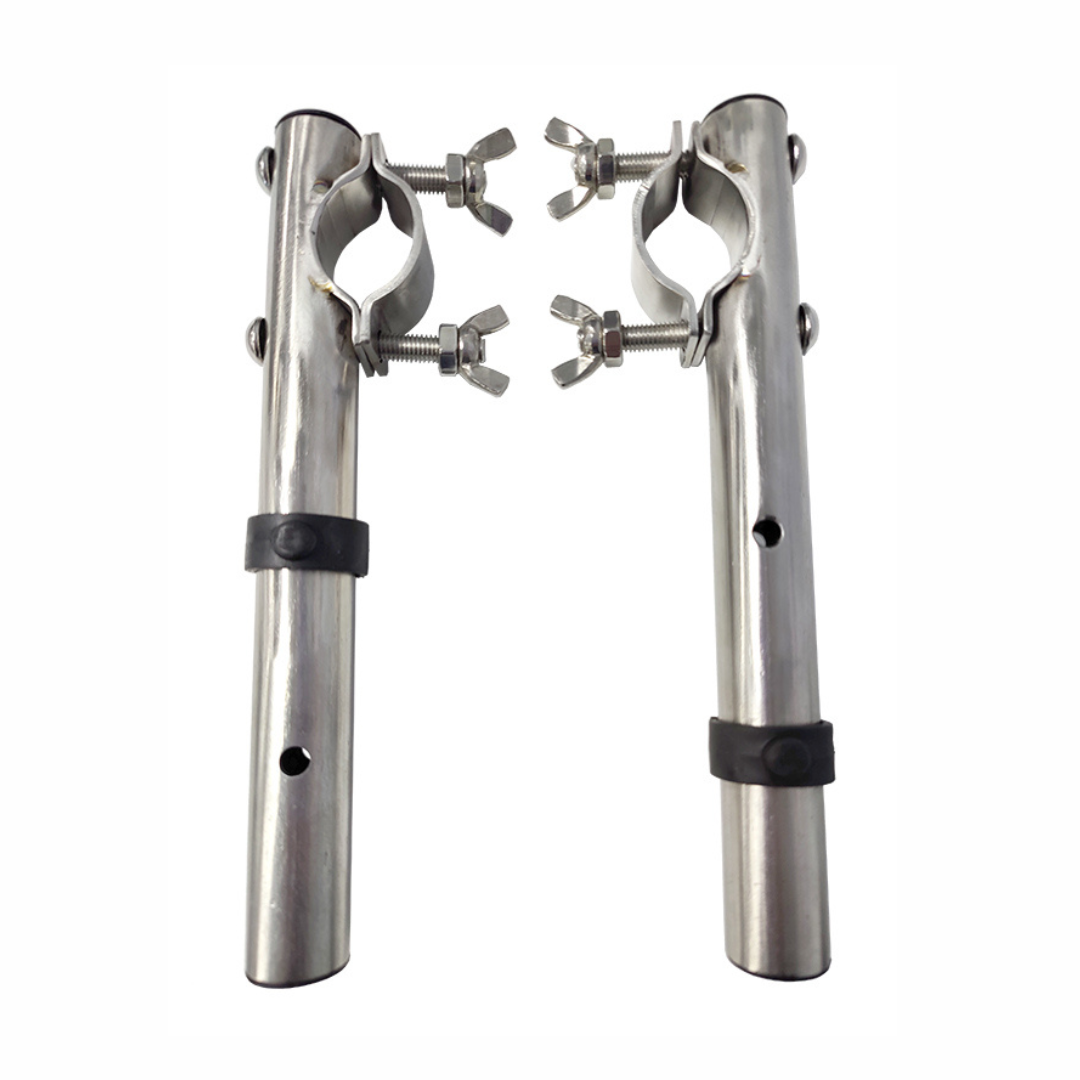

EZRide Struts:

• 1 inch/25mm diameter tubes.

• 6 inches long.

• Mounted on frame members for when the tow bar is too wide, even when fully collapsed.

• Extends EZRide further out from front of the wheelchair.

• Pin stop ensures the tow bar clamps will not slide off.

• Can be mounted on wheel chair frames up to a diameter of 38mm/1.5 inches.

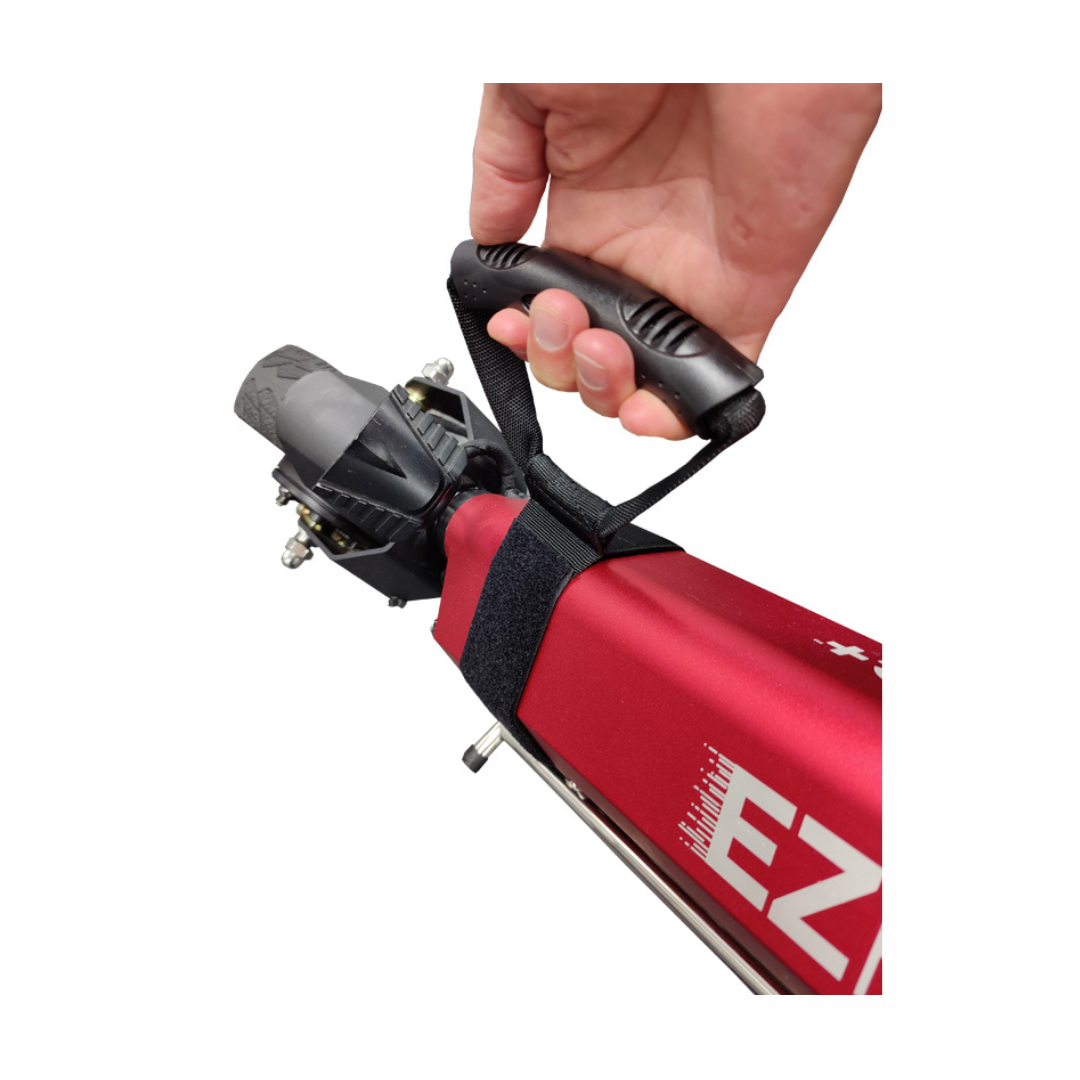

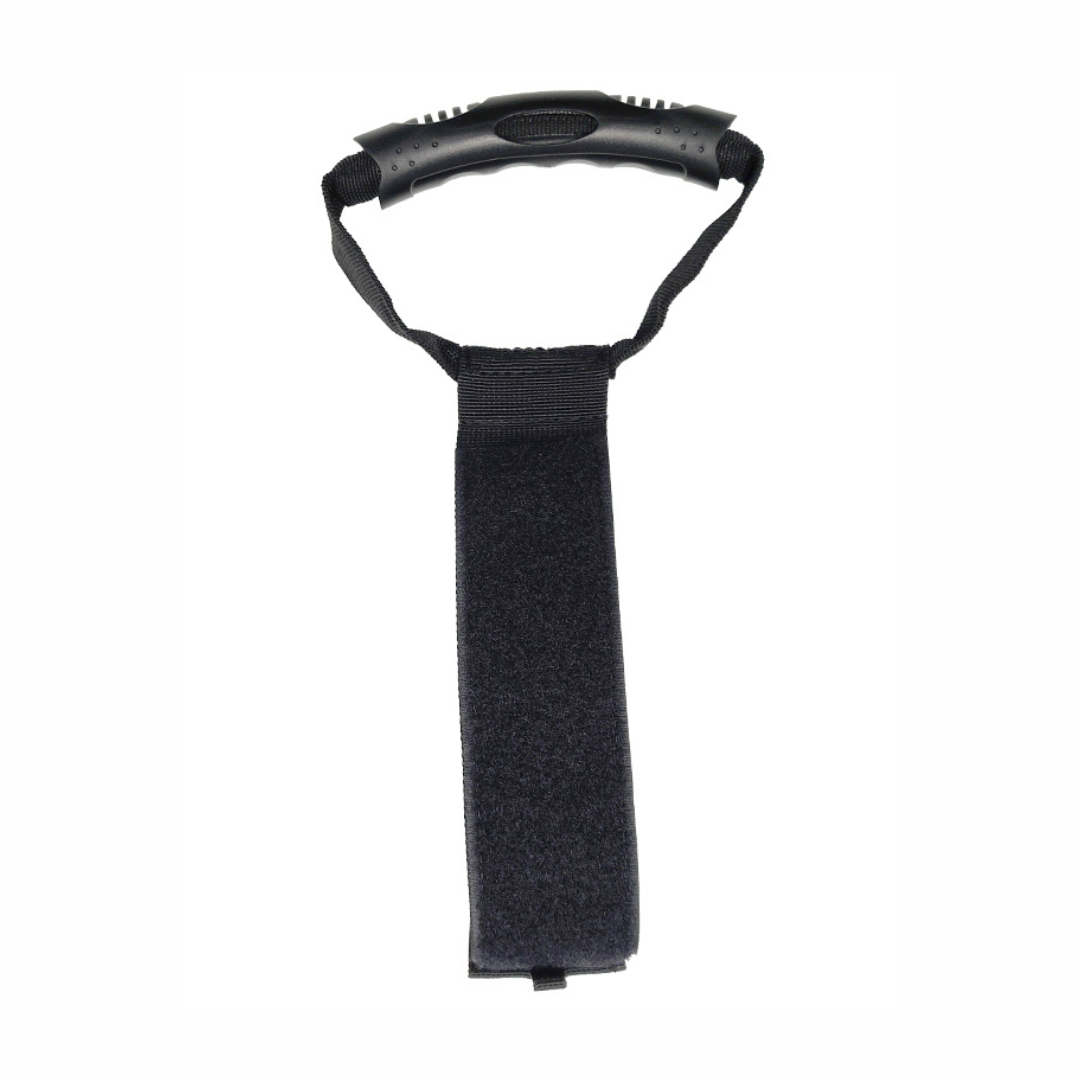

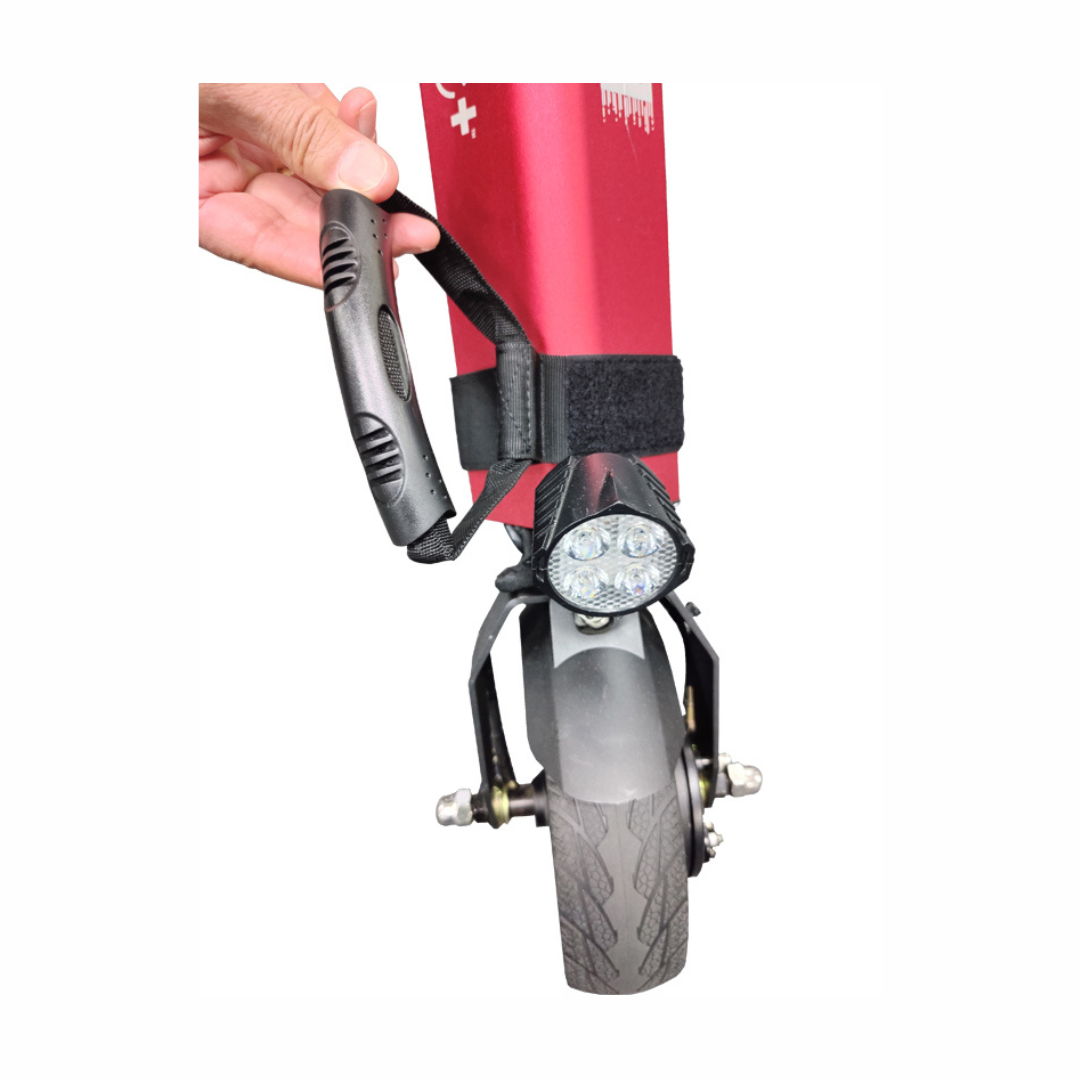

EZRide Grab Handle:

• Heavy duty nylon mesh.

• Wide velcro closure.

• Sturdy rubber handle.

• Makes it easier to load, unload, and store EZRide.

• Velcro closure allows easy removal when not in use.
