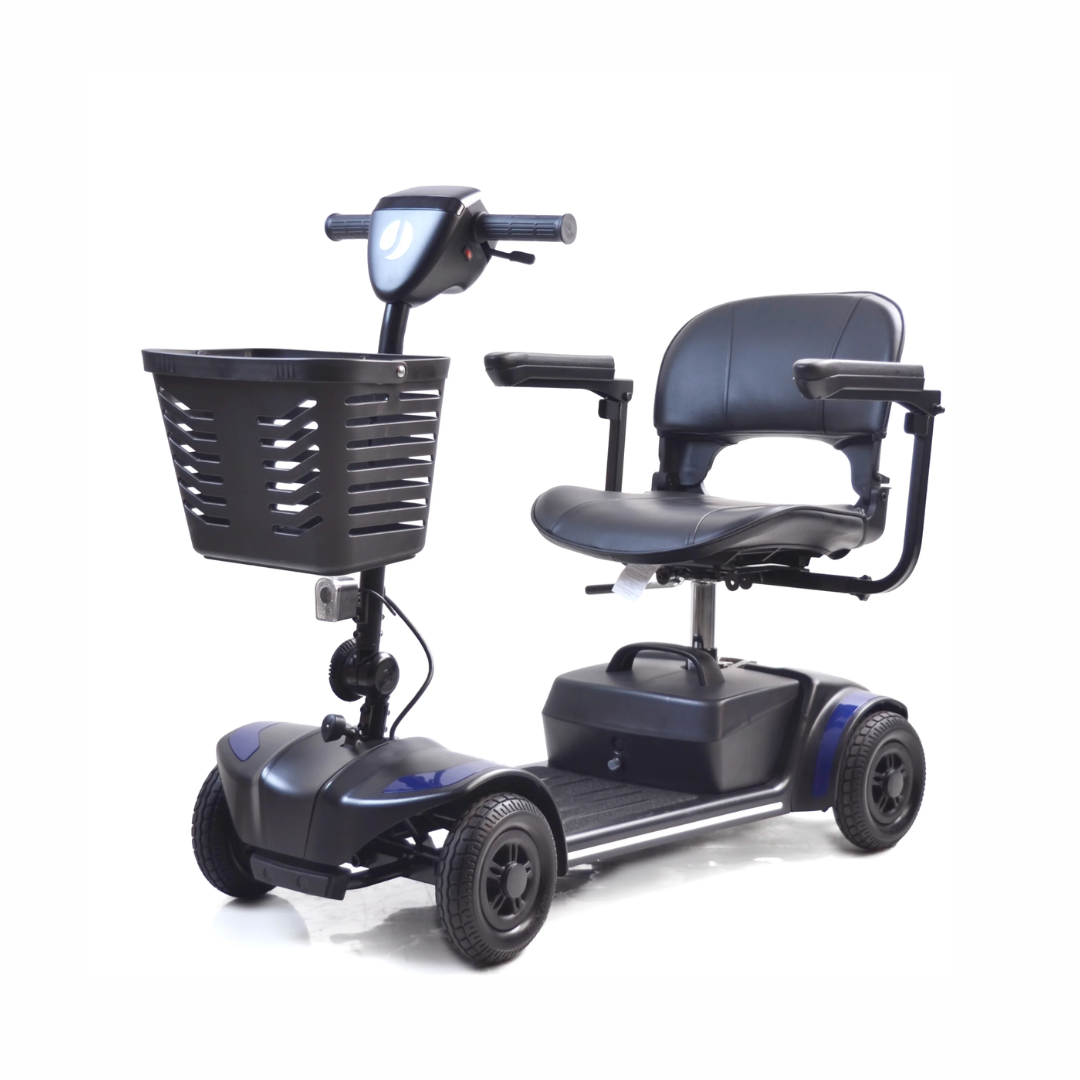

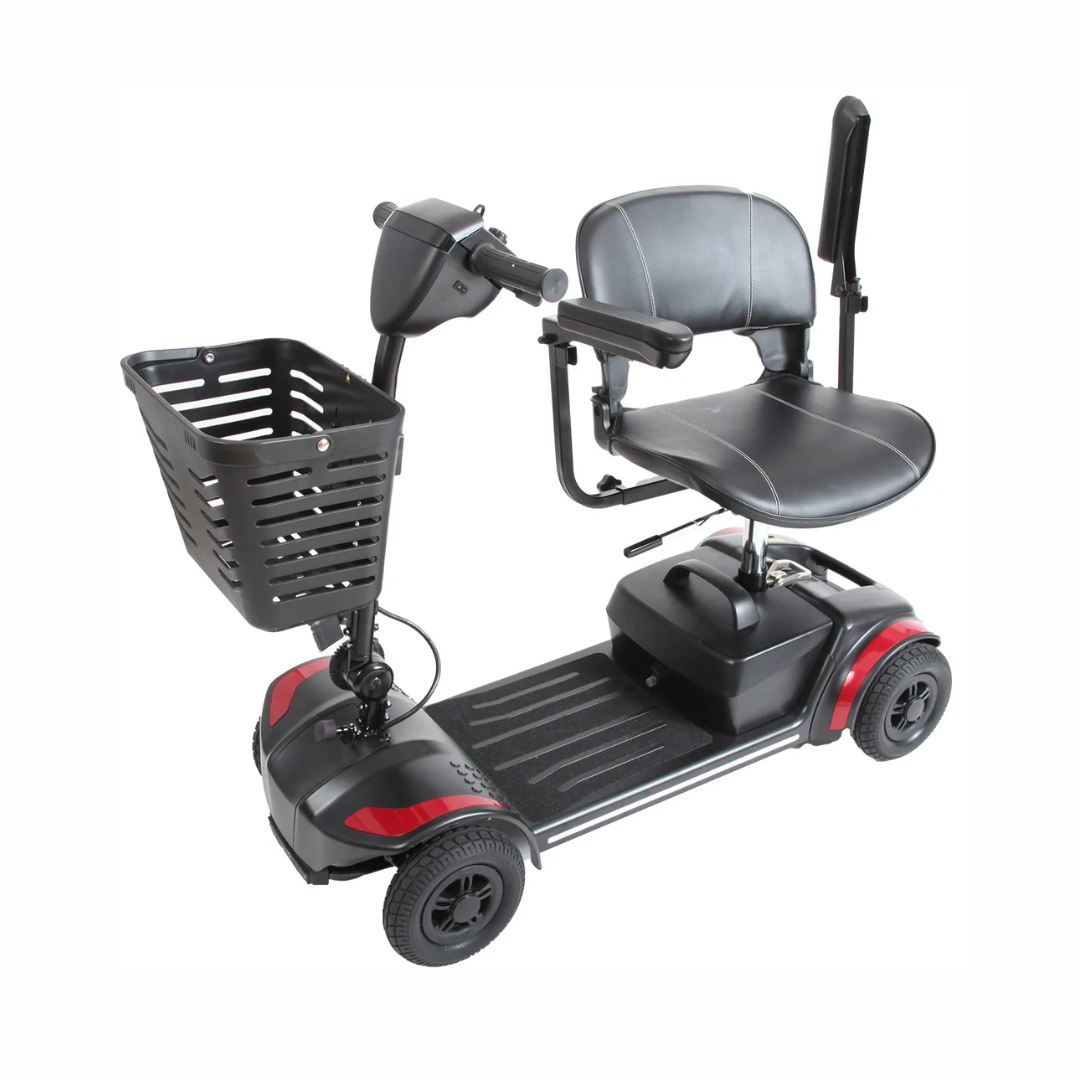

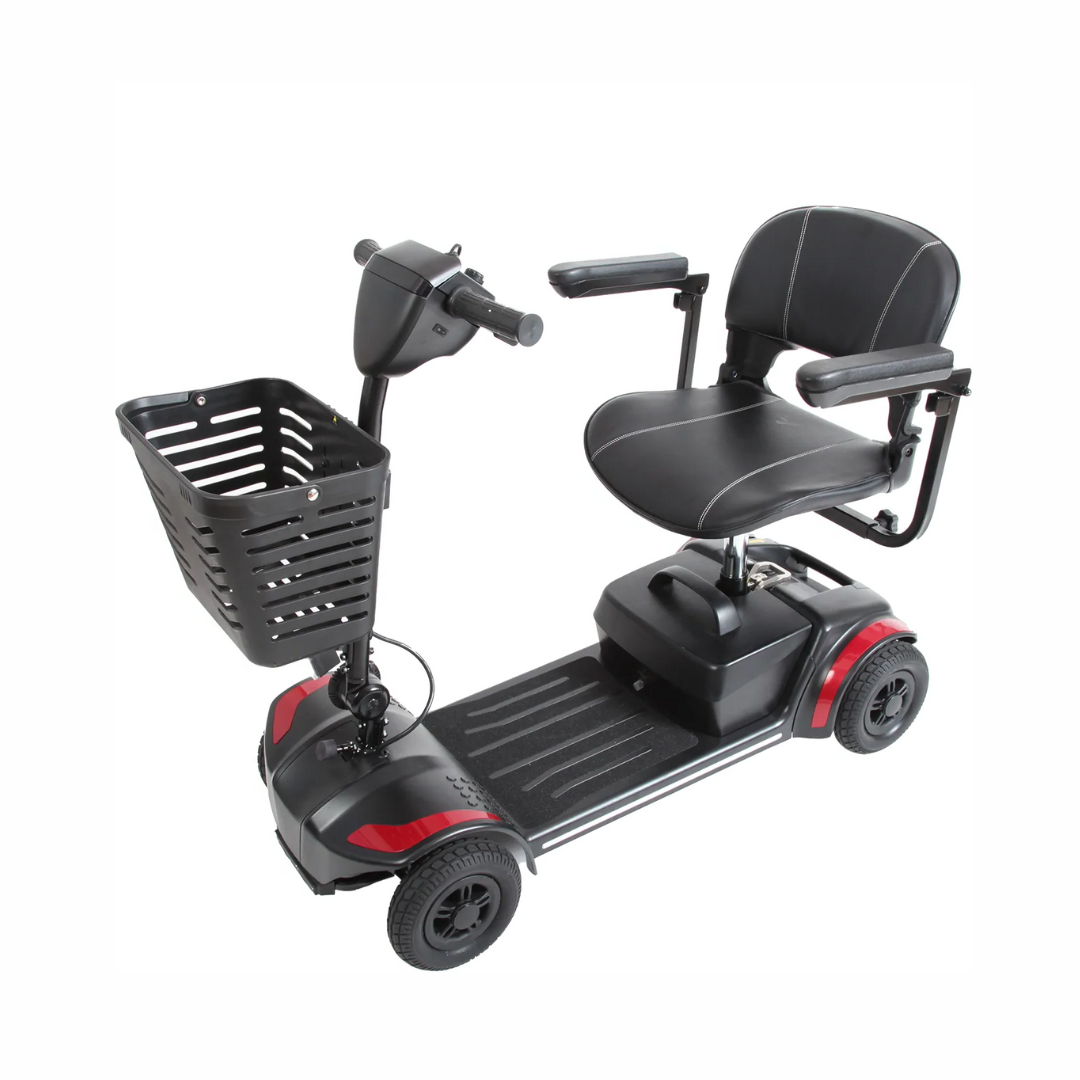

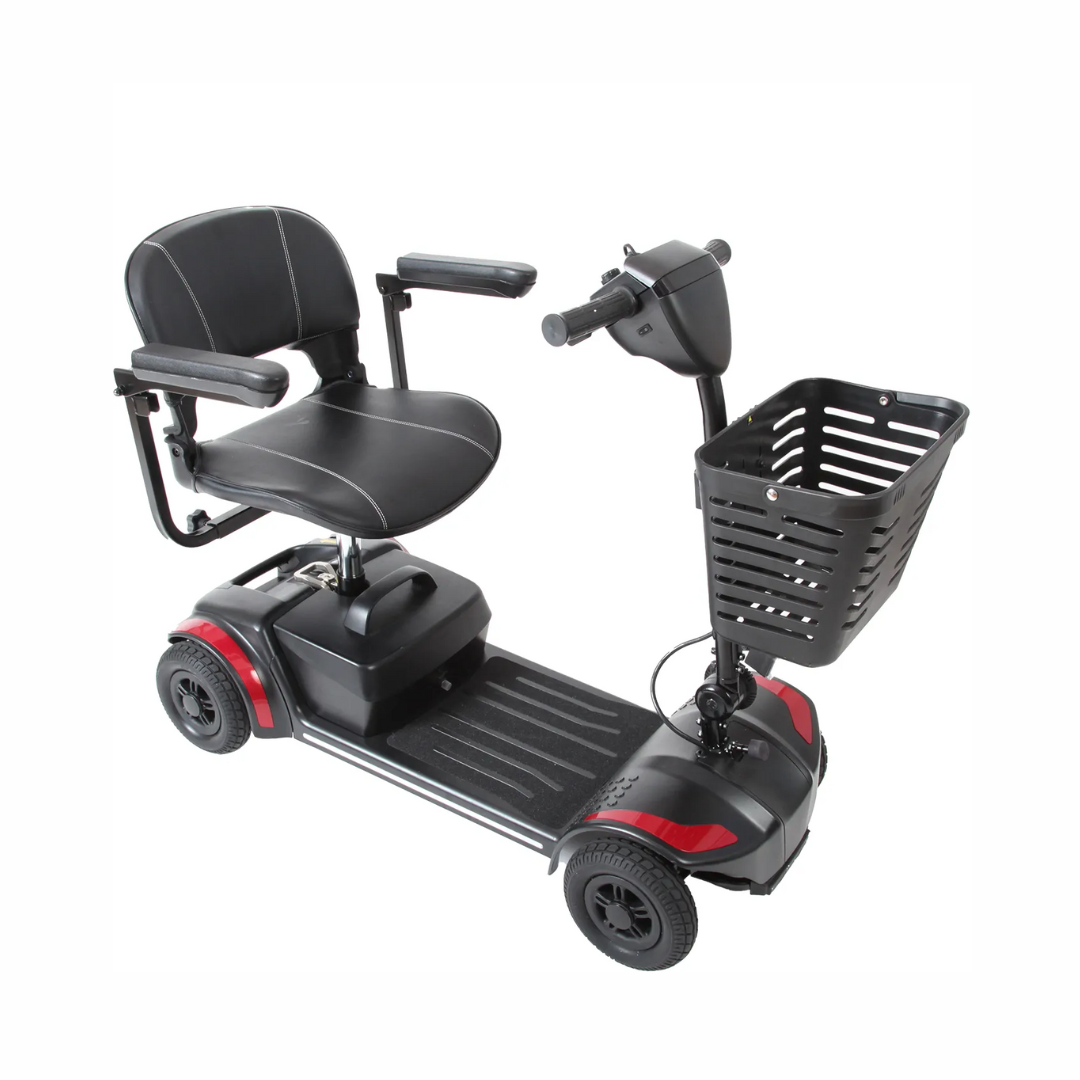

Journey Adventure 4 Wheel Mobility Scooter (8910) By Journey Health

Experience a newfound sense of freedom and independence with the Journey Adventure Mobility Scooter!
Crafted with seniors in mind, it can be used indoors and outdoors alike with its 4-wheel stability and powerful battery, promising you up to 12.4 miles on a single charge. Easily break it down and reassemble in minutes, tool free- its heaviest piece weighs just 33 pounds - making it extremely portable. Plus, it's incredibly easy to use, with intuitive controls that make it a joy to drive. Stop living with mobility restrictions - reclaim your life today!

Model: 8910 Journey Adventure

Type Scooter: rear wheel drive, Class A

Endurance mileage: 24V15Ah AGM Battery: 16km

Maximum height of obstacle: 2 in

Minimum width required to reverse: 51.1 in

L x W x H Dimensions unfolded(mm): 41.3” x 19” x 34.6”

Total mass, battery included: 96 lbs (24V15Ah AGM)

Weight of battery: 20 lbs

Maxium weight of single part（Front frame assembly）: 33 lbs

Effective seat depth: 14.2 in

Effective seat width: 17.1 in

Seat surface height at front edge: 20-21.5 in

Height footplate: 4.3 in

Angle seat surface: 3°

Battery: AGM Battery 24V15Ah

Controller: Dynamic 50A

Protection class: IP X5

Battery charger: Input: 100-240 VAC , 50-60Hz , 1.2-0.5A , Class II Output : 24VDC , 2.0A

Protection class of battery charger: IPX1

Insulation class of battery charger: Class 2

Max. sound level scooter motor: 68 dB

EMC compatible according to: ISO 7176-21

Ignitability of upholstery according to: EN 1021-2

Diameter rear wheels (number): 8x2.5inch

Diameter front wheels (number): 8x2.5 inch

Suspension: N/A

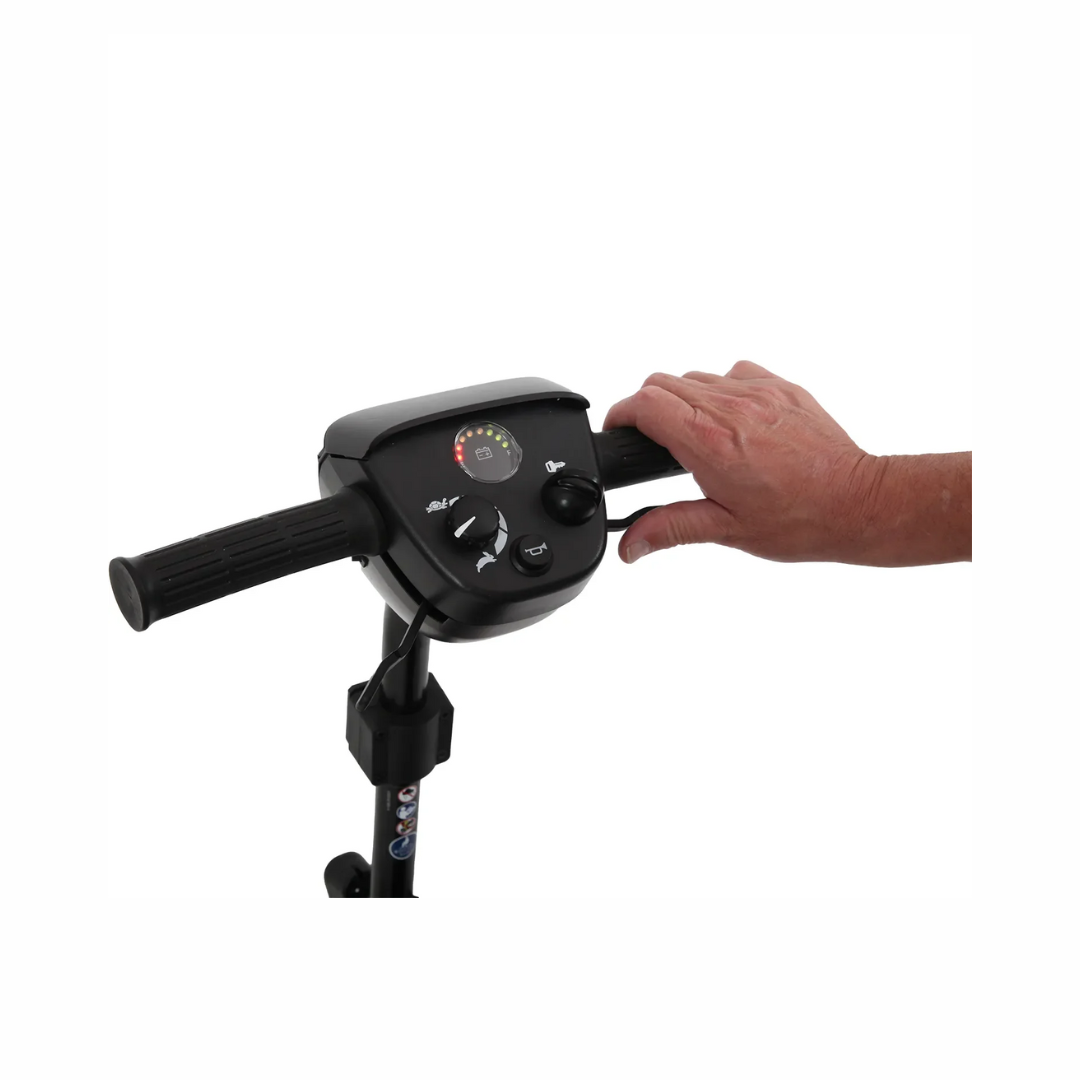

Control (wig-wag): Lever to start/stop movement

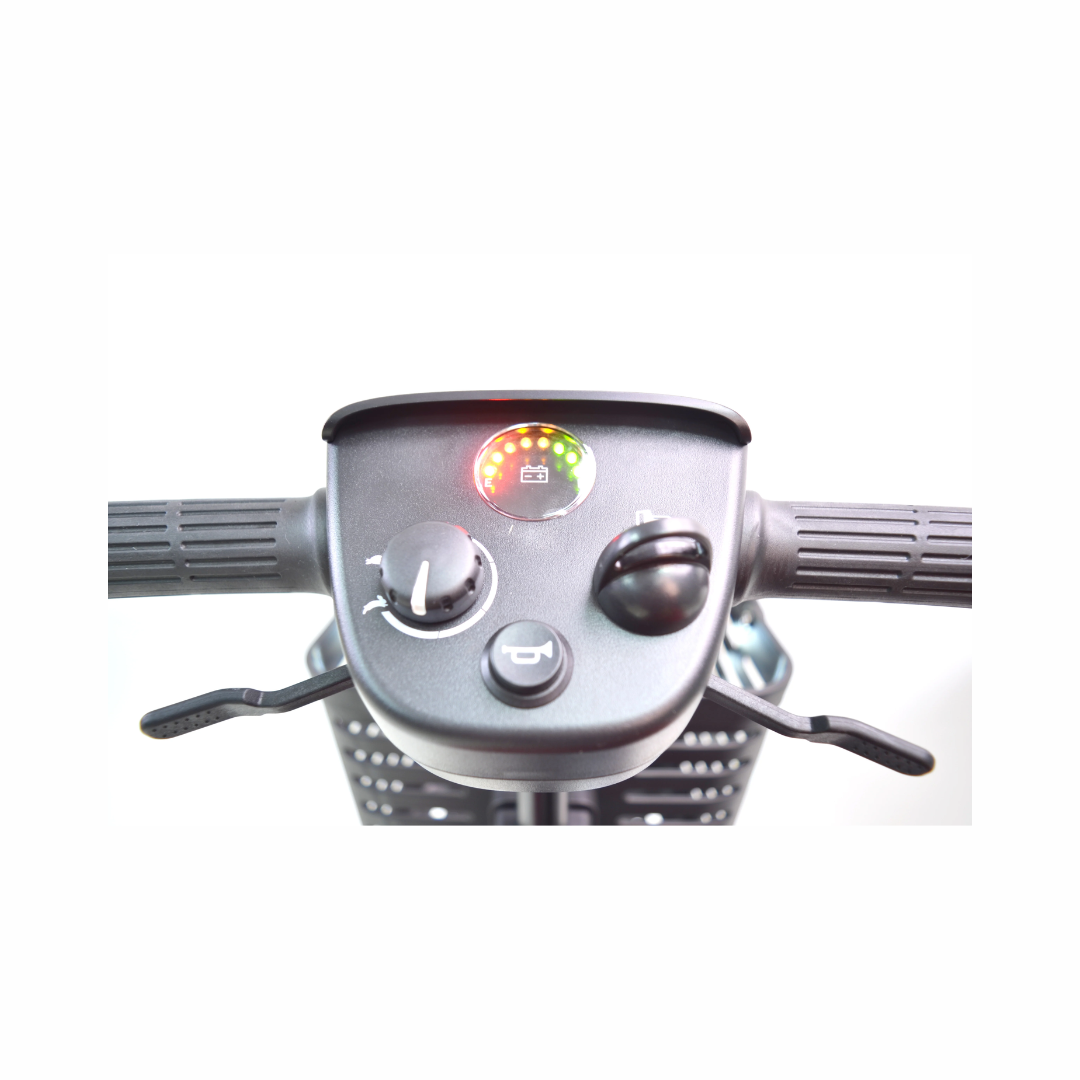

Operating console: Rotatable switch for speed control

Storage and use temperature: -10 ° C to +50 ° C

Humidity to store and use: 30% ~70%

Overall length with leg rest: 41.1" in

Overall width: 19" in

Seat depth: 14.2" in

Folded length: 41.1" in

Seat width: 17.1" in

Folded width: 19" in

Folded height: 13.8" in

Backrest angle: 20"

Total weight: 96 lbs

Backrest height: 13" in

Weight of the Heaviest Part: 33" lbs

Floor to Seat Distance: 18" in

Dynamic Stability Uphill: 8"

Range: 10 miles

Obstacle Climbing: 1.8 in

Turning Radius: 51.2 in

Maximum Speed Forward: 5 mph

Weight Capacity: 300 lbs

Minimum Braking Distance From Max Speed: 54.3 in

Required Doorway Entry Depth: 54.3 in
